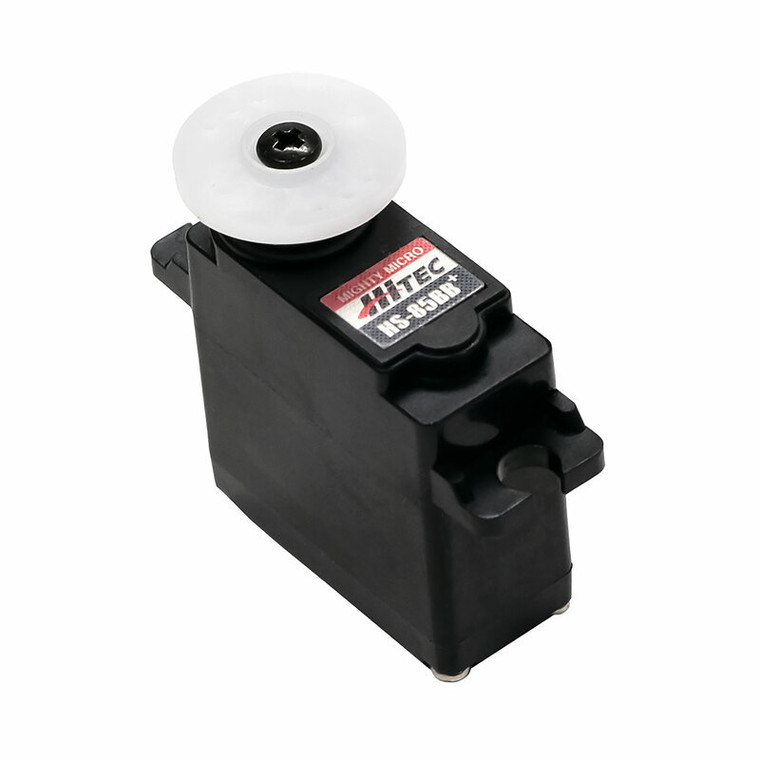

Hitec #HS-85BB Mighty Micro Servo-4.8V
The HS-85BB features a high power motor for greater speed and torque. The HS-85BB is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, heli’s and sail planes.
| Output Shaft Style | 24T Spline |
|---|---|
| Voltage Range | 4.8V - 6.0V |
| No-Load Speed (4.8V) | 0.16sec/60° |
| No-Load Speed (6.0V) | 0.14sec/60° |
| Stall Torque (4.8V) | 41.66 oz-in (3 kg.cm) |
| Stall Torque (6.0V) | 48.6 oz-in (3.5 kg.cm) |
| Max PWM Signal Range | 553-2300μsec |
| Travel per µs | .104°/μsec |
| Max Rotation | 182° |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -20°C to +60°C |
| Current Drain - idle (4.8V) | 8mA |
| Current Drain - idle (6.0V) | 8.6mA |
| Current Drain - no-load (4.8V) | 240mA |
| Current Drain - no-load (6V) | 260mA |
| Continuous Rotation Modifiable | No |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 8µs |
| Motor Type | 3 Pole Ferrite |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Top Ball Bearing |
| Gear Material | Nylon |
| Wire Length | 6.29" (160mm) |
| Weight | 0.67oz (19.2g) |
| Wire Gauge | 28AWG |
| Servo Size |
