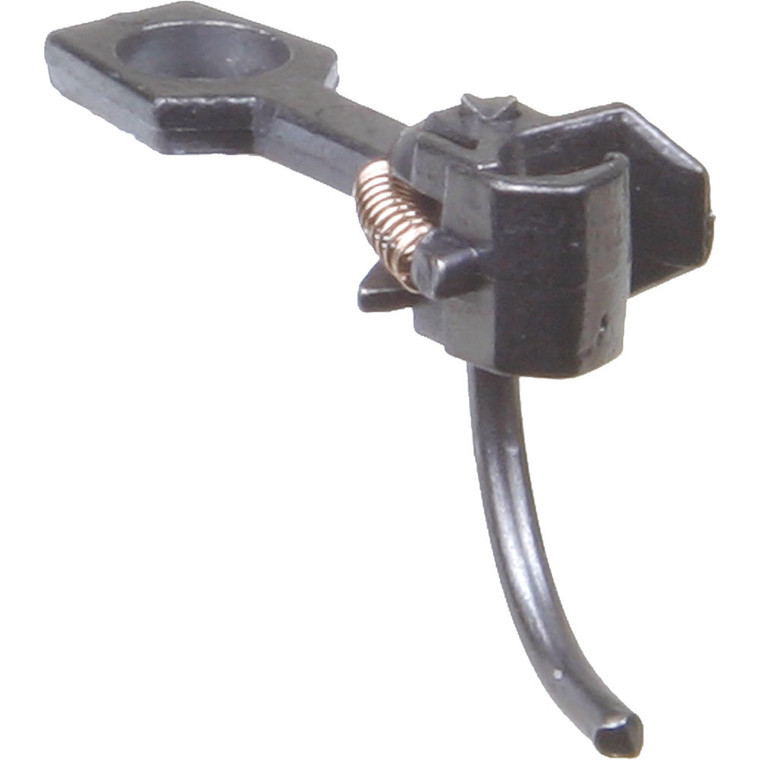

Kadee #11 Magne-Matic Bulk Pack 20 pair his industry leading coupler features an all metal standard coupler, and #634 standard centering spring. The NO.5® Magne-Matic® Metal Coupler may be mounted with the #213, #232, #234, #242 Gearboxes (not included) or with other manufacturers cast-on coupler pockets.
The 148 Whisker® Coupler is equivalent to the NO.5® Metal Coupler.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #28 coupler.
| Material | - Metal |

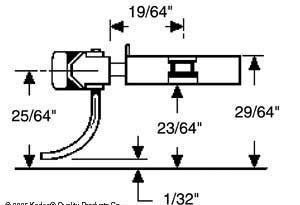

| Shank Length | - Medium (9/32") (center hole to back of coupler head) |
| Coupler Offset | - Centerset |
| Knuckle Spring | - #622 |
| Centering System | - Standard Shank |
| Centering Spring | - #634 Centering Spring NO.5® Style |
| Head | - Standard Head |
| Works In Place of | - #58, #28, #118, #119, #148, #158, most medium centerset "clone" couplers |
| Works With | - #213, #232, #234, #242, most manufacturer cast-on draft gearboxes |
