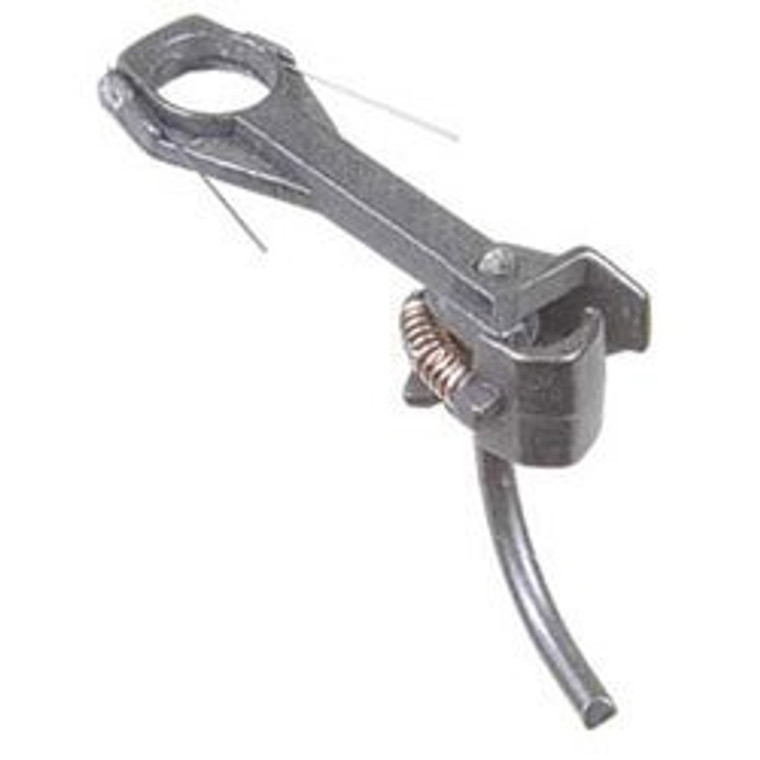

Kadee #149 Magne-Matic "Standard" Head Metal "Whisker" Coupler
This industry leading coupler features an all metal coupler head, shank, and Whisker® centering spring and comes complete with insulated draft gearbox and lid. The #149 Magne-Matic® Whisker® Metal Coupler may be mounted with the included #242 Snap-Together Gearbox or with other manufacturers cast-on coupler pockets.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #29 coupler.
Package Includes:
Material | - Metal |
Shank Length | - Long (25/64") (center hole to back of coupler head) |
Coupler Offset | - Overset |
Knuckle Spring | - #622 |
Centering System | - Whisker® |
Head | - Standard Head |
Works In Place of | - #29, #39 (#149 in a #252 box), Long Overset "clone" couplers |
Works With | - #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes |
