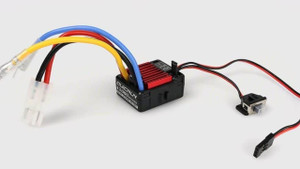

RCwing # 1060 BRUSHED ESC (2-3S)Water proof
FEATURES
Water-proof and dust-proof, suitable for all weather races.
Small size, with built-in capacitor module.
Fwd/Rev/Brushed running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
Great current endurance capability.
Great built-in BEC output capacity.
Automatic throttle range calibration, easy to use.
ESC parameters are easy to set with jumpers.
Multiple protections:
Over Voltage Protection
Low voltage cut-off protection for battery
Over-heating protection
Throttle signal loss protection.
Specification:
- Small size with built-in capacitor module.
- Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.
- Excellent operating feelings and plentiful adjustment options, suitable for most kinds of competitions.
- (Fwd =Forward, Br=Brake, Rev=Reverse)
- Fwd. Cont. / Peak Current: 60A /360A
- Rev. Cont. / Peak Current: 30A /180A
- Voltage Range: 2-3S Lipo or 5-9 NiMH
- Cars Applicable: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
- Motor Limit:
- 2S Lipo or 6 NiMH
- 540 or 550 Size Motor: ≥12T Or RPM<30000 @7.2V
- 3S Lipo or 9 NiMH
- 540 or 550 Size Motor: ≥18T Or RPM< 20000 @7.2V
- 4S Lipo or 12 NiMH
- Not Available
- Resistance: Fwd 0.001Ω, Rev 0.002Ω
- BEC Output: 2A/5V (Linear Mode)
- PWM Frequency: 1KHz
- Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
- Net Weight: 36g
Size Chart:
Size:34x28x22mm/1.3x1.1x0.9inch
