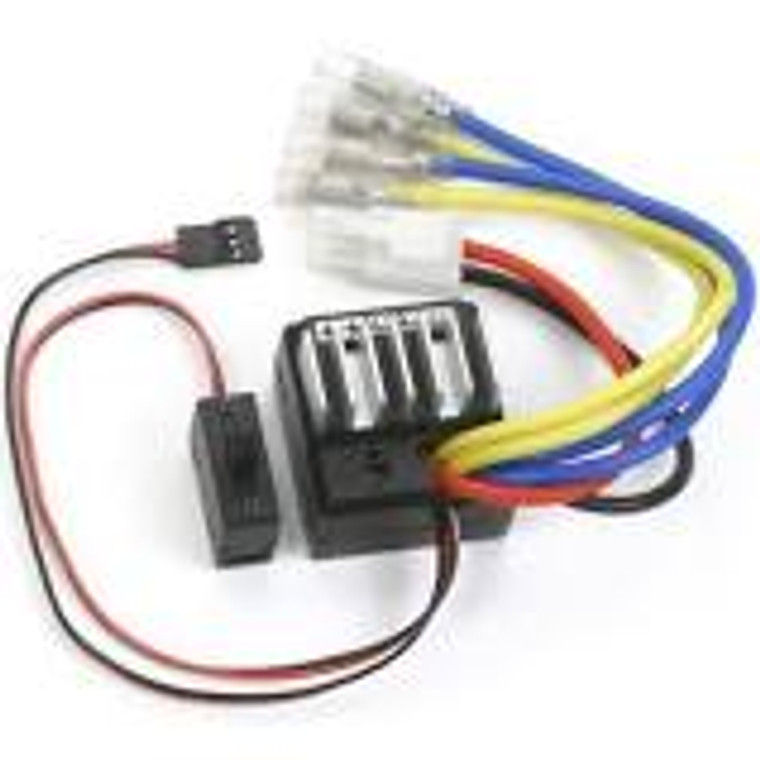

Tamiya #45054 TEU-106BK ESC
This is a compact forward/reverse electronic speed controller for twin-motor R/C models such as the Dual Hunter and Super Clod Buster.
A single button allows easy setting of forward/reverse high points and neutral position. The reverse function can be disabled and the ESC features heat and over current protection functions with LED indicator. Compatible with Lithium-Ion battery technologies, and includes a battery cut-off function to prevent over-discharging. Alarm and LED warnings indicate no-signal status. The 106BK features an aluminum heat sink and built-in BEC.
Caution: Motors rated below 25 Turns are not meant to be used with the TEU-105BK and should not be used.
| High frequency wave drive system | |
| Max. continuous current (FET spec): Forward 150A, Reverse 75A | |
| Output: Forward 100%, Reverse 50% | |
| Input voltag: 6.6-7.2V | |
| Compatible motor: Electric brushed motor for RC cars (Up to 2 Sport Tuned Motor or motors more than 25 Turns) | |
| Drive frequency: 1kHz | |
| Output voltage for receiver: 6.0V/2A (BEC) | |
| Dimensions: 35.0x36.5x29.0mm | |
| Weight: 59 |
