Tamiya #56325 MAN TGX26 540 6x4 1/14 Tractor Truck

Tamiya #56325 MAN TGX26 540 6x4 1/14 Tractor Truck Kit set

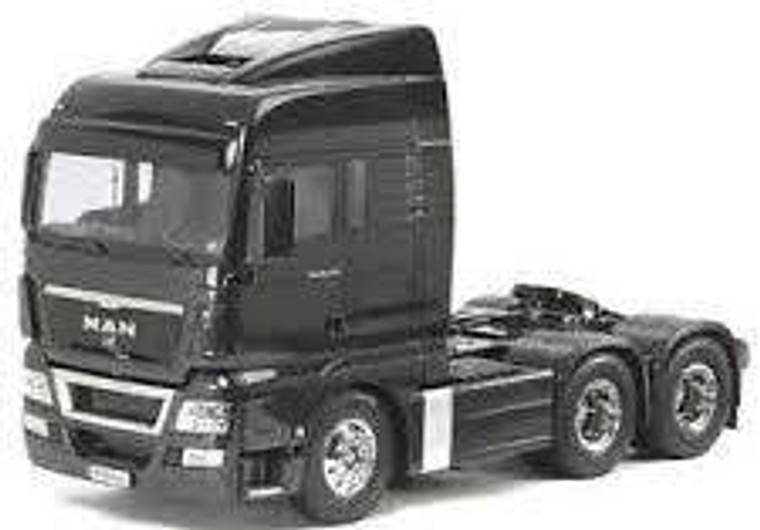

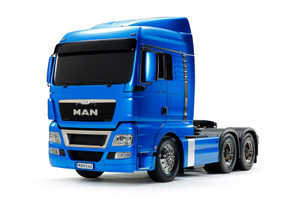

The latest addition to Tamiya"s 1/14 scale R/C Tractor Truck series is the MAN TGX 26.540 6x4 XLX. This impressive truck, which made its debut at the 2007 European Transport Road Show in Amsterdam, was the winner of the 2008 Truck of the Year award. It features two rear axles which assist in the carrying of heavy loads over long distances. It is powered by an in-line 6 cylinder 12.4 liter turbocharged diesel engine which meets the stringent Euro 5 emissions standards to make it more environmentally friendly.

Also known as transporters that are used by F1 teams today, MAN Company's tractor truck the TGX 26.540 6x4 XLX was awarded “The 2008 Truck of the Year.” This award winning truck comes reproduced as a 1/14 scale electric R/C model. The model features a ladder frame chassis with aluminum channels, suspension with metal leaf springs and friction dampers, and rear axles equipped with differentials. Providing this truck with a realistic scale finish are parts which feature two kinds of metal-plating and metal transfers to beautifully depict details such as the front grille's emblem. Furthermore, the chassis features a 3-speed transmission which allows gear shifting while driving via transmitter, with the sound and lighting actions reproduced by the separately available Multi Function Control (MFC-01) unit.

FEATURES

Chassis: Ladder frame with aluminum channels and resin cross members
Cabin: Tilt forward operation just like full-size truck, removable fenders to depict a low carrying load
Drive: Shaft driven from front mounted motor to rear axles which are equipped with differentials
Motor: RS540
Transmission: Three speed servo controlled constant mesh
Suspension: Die cast metal front axle and reinforced resin rear axles float mounted on metal leaf springs and coil spring shocks
Cabin: Molded plastic, white in color tilts forward separately from fenders, clear plastic windows, separate grille, mirrors, seats dashboard and other accessories add to realism
Wheels: Chrome plated plastic
Tires: Ten, treaded rubber construction

INCLUDES

1/14 scale Tamiya TGX 26.540 6x4 XLX semi kit, 540 motor, tires, wheels, decal sheet, 3-speed transmission, instructions and coupler unit for trailer (trailer not included)

Needed to Complete

•     4 Channel Radio and Receiver - Futaba 4YWD
•     Two Standard Size Servos for steering and Shifting
•     Tamiya Brushed ESC
•     7.2V NiMH Battery with standard Tamiya connector
•     Charger for Battery
•     Paint and Building equipment

SPECIFICATIONS

Length: 20.7" (526mm)
Width: 7.6" (193mm)
Height: 11.8" (301mm)
Gear Ratio: Low Gear 1:32.49
2nd Gear 1:17.66
3rd Gear 1:10.66

Note: This truck kit is a not painted (White plastic)

Not included in Kit. 4ch Transmitter, 4ch receiver, 2 servos, electronic speed controller, battery pack, battery charger and batteries for transmitter
