Tamiya #58741 1/10 R/C FIGHTER NXGEN (DT-04 CHASSIS)

SKU:
4950344587414
$329.00
(No reviews yet) Write a Review
Current Stock:
2

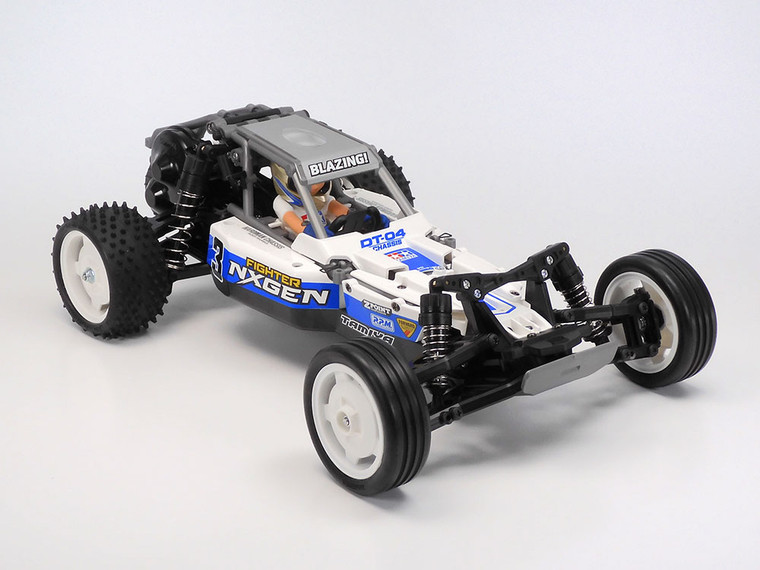

Tamiya #58741 1/10 R/C FIGHTER NXGEN (DT-04 CHASSIS)

The DT series of chassis and its Fighter Buggy models enjoy great popularity around the world, and have evolved through iterations such as the Fighter Buggy RX on the DT-01 chassis, the Super Fighter G on the DT-02, the Neo Fighter Buggy on the DT-03, and now the Fighter NXGEN on the new DT-04 chassis. Its body is inspired by full size single-seater buggies, and has separate body panels screw-fixed to its frame. A driver figure is also included.

DT-04 Chassis: Lively RWD Performance
This is a rear-wheel drive buggy chassis which offers ease of assembly and lively performance. It has an inline battery pack position, and a rear-mounted motor to give the rear wheels plenty of traction. The sealed gearbox has a built-in gear differential for smooth cornering and helps keep out dust and dirt. Two wheelbases can be selected: 265mm for emphasis on handling or 280mm for emphasis on stability. 4-wheel independent double wishbone suspension with long arms employs CVA oil dampers. Front skid angle is 22.5 degrees to ensure both controllability and powerful performance. The 3-piece steering tie-rod gives true steering. Here, the chassis features ribbed tires on the front, and grippy square spike tires on the rear.

Specifications
Length: 395mm (with 265mm wheelbase), width: 245mm, height: 125mm .Wheelbase: 265mm/280mm .Tread (front/rear): 217mm/204mm .Tire width/diameter: 27/80mm (front), 41/86mm (rear) .Monocoque frame .Rear-wheel drive .3-bevel differential .3-piece steering tie-rod .Front & rear double wishbone suspension with CVA oil dampers .Gear Ratio = 9.28:1 .Type 540 Motor .ESC included for export.

Separately Required Items
2-Channel R/C Unit with ESC .Battery Pack & Charger .R6/AA/UM3 batteries for transmitter
