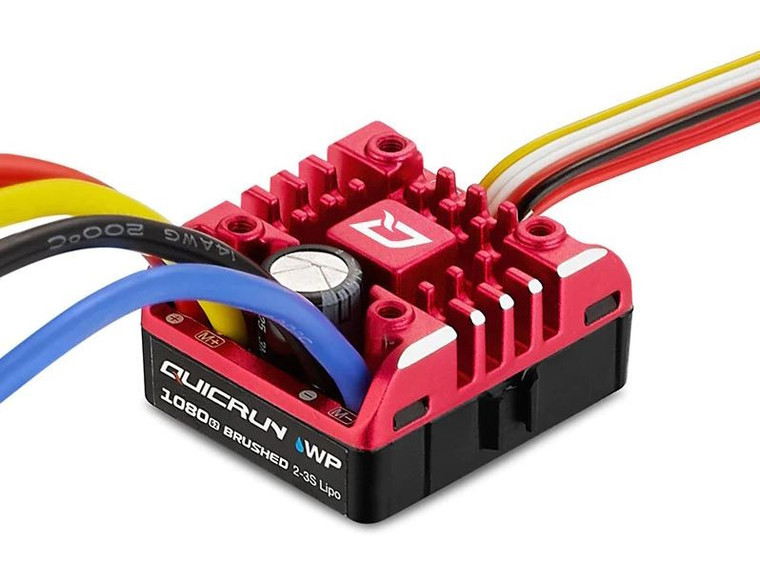

Hobbywing #30120202 Quicrun 1080 G2 1/10 80Amp Brushed ESC

Hobbywing #30120202 Quicrun 1080 G2 1/10 80Amp Brushed ESC

SKU:
088718513159
$99.00
(No reviews yet) Write a Review
Current Stock:
1
Description

Hobbywing #30120202  Quicrun 1080 G2 1/10 80Amp Brushed ESC

Hobbywing Quicrun 1080 G2 1/10 Brushed ESC

The Hobbywing QuicRun Waterproof 1080 G2 Brushed Crawling ESC is designed to bring top levels of performance to the Crawler ESC category. This ESC is extremely compact and features many updates! The most impressive is the "Real Car Mode". Using an idle channel on your transmitter allows you to pull the throttle and switch between forward or reverse with pushing the throttle applying brake. This will bring an added level of realism to your RC adventure.

Key Features:

  • Water-proof and dust-proof, suitable for all weather races.
  • Small size, with built-in capacitor module.
  • 100% Waterproof
  • Adjust drag brake in real time
  • Optimized software allows for cooler operating temperature when compared to prior 1080 ESCs
  • Aluminum case for great heat dissipation
  • Enhanced BEC to meet the needs of more modern servos
  • 15 Adjustable parameter items to suite your driving needs

Technical Specifications:
Fwd Cont. Current /Peak Current/ Resistance: 60A/360A/0.001Ohms
Rev Cont. Current /Peak Current/ Resistance: 30A/180A/0.002Ohms
Motor Type Supported: Brushed Motor
Application: 1:10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
Suitable Battery: 2-3S LiPo, 6-9 cell NiMH
Brushed Motor Limit:
2S LiPo or 6 cell NiMH: 540 or 550 Size Motor: ?12T, Or RPM<30000 @7.2V
3S LiPo or 9 cell NiMH: 540 or 550 Size Motor: ?18T, Or RPM< 20000 @7.2V
BEC Output: 2A/5V (Switch Mode)
PWM Frequency: 1KHz
Size/ Weight: 35.5(L)*32.18(W)*18(H) / 39g
Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
Cooling Fan: No need
