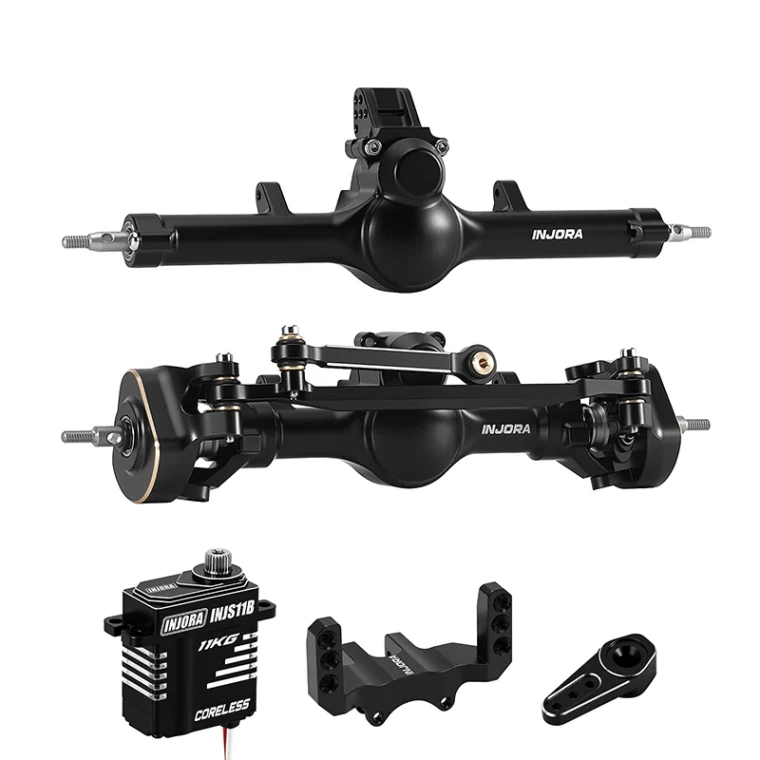

INJORA # SCX24-190BKFR-INJS11 V2 +4mm Planet Axles & Servo Kit for 1/24 SCX24, Double Joint Shafts, Ramped Diff Covers
INJORA V2 +4mm Planet Axles & Servo Kit for 1/24 SCX24, Double Joint Shafts, Ramped Diff Covers
Features:
The V2 Planet Axles feature aluminum ramped diff covers for smoother sliding over obstacles with fewer hang-ups
Planet-shaped differential housing is precision CNC-machined for a highly realistic scale appearance
+4mm per side track width improves stability while maintaining scale proportions
Stainless steel double joint axle shafts allow up to a 52° steering angle
Aluminum steering link sits closer to the axle housing for a compact, clean setup without excessive protrusion
Hardened alloy steel 2/16T worm gear set provides smooth, consistent power delivery and excellent durability
Brass steering knuckles add front-end weight for improved stability and traction
Adjustable rear truss link mount increases link spacing and improves anti-squat geometry for better climbing performance
Axles Specifications:
Part Number: SCX24-203BKFR
Housing Material: Aluminum
Steering Link Material: Aluminum
Steering Knuckle Material: Brass
Axle Gear Material: Alloy Steel
Gear Ratio: 2/16T (Front & Rear)
Shaft Type: Double Joint
Maximum Steering Angle: Approx. 52°
Overall Length: 105mm
Front Axle Weight: 63g
Rear Axle Weight: 28g
INJS11B Servo Specifications:
Operating Voltage: 6V-8.4V
Torque(6V): 8kg-cm/111oz-in
Speed(6V): 0.106"/60°
Torque(7.4V): 9.5kg-cm/132oz-in
Speed(7.4V): 0.085"/60°
Torque(8.4V): 11kg-cm/153oz-in
Speed(8.4V): 0.074"/60°
RC Angle: 90°±5°
500-2500μs Angle: 180°± 5°
Motor: Coreless
Gear Type: Stainless Steel
Spline: Φ4.9 Mini 25T
Bearing: 2BB
Size: 32×12×27mm
Weight: 21g/0.74oz
Waterproof: Yes
INJS2065 PRO Servo Specifications:
Case Material: Aluminum Alloy, Nylon
Motor: Core Motor
Voltage Range: 4.8–8.4V
Operating Speed (7.4V): 0.069sec/60°
Operating Speed (8.4V): 0.061sec/60°
Stall Torque (7.4V): 7.93kg·cm / 110.1oz·in
Stall Torque (8.4V): 9.00kg·cm / 125.0oz·in
Control Signal: PWM
Operating Angle: 180° (500–2500μs)
Gear Type: Stainless Steel
Spline: Φ5.9 25T
Wire Length: JR 250mm / 26AWG
Size: 23×13×25.9mm
