Kadee #22 Magne-matic Multi-Purpose Insulated Coupler Kit
This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#22 Magne-Matic® Metal Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Package Includes:
| Material | - Metal Knuckle, Plastic Coupler Shank |

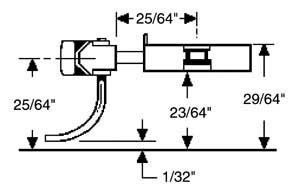

| Shank Length | - Medium (9/32") (center hole to back of coupler head) |
| Coupler Offset | - Overset |
| Knuckle Spring | - #622 |
| Centering System | - Standard Shank |
| Centering Spring | - #634 Centering Spring NO.5® Style |
| Head | - Standard Head |
| Works In Place of | - #142, Medium Overset "clone" couplers |
| Works With | - #213, #232, #234, #242, most manufacturer cast-on draft gearboxes |
