Savox #SA-1256TG+ STD SIZE 20KG/CM, CORELESS DIGITAL SERVO

Savox #SA-1256TG+ STD SIZE 20KG/CM, CORELESS DIGITAL SERVO

Product description and features

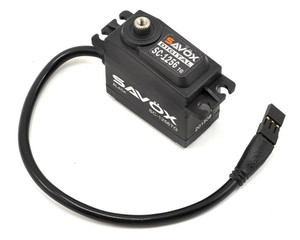

The SA-1256TG+ is a powerful servo of the standard size which is very well suited for use in wing models. The servo can also be used in RC cars and swash plate servo for scale helicopters up to 700 class

The new + version now has a soft start which moves the servo slowly into the start position when switched on distinguish by the + version.

The SA version of the 1256TG+ servo is specially designed for use in fixed-wing models. The A in SA stands for Aircraft. Gearbox and software are optimised for this application, the low-backlash titanium gearbox is extremely robust and reliable. The software has also been adapted, the holding force around the zero position has been optimised here. Suitably reinforced servo arms are included.

Features:

Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
Super light-weight.
Coreless motor provides high speed, incredible efficiency, and low power consumption.
Titanium gears ensure long life and durability.
The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
Ideal for plane applications where a minimized backlash is needed.
Servo Technology:    Digital Low Voltage
Servo Case:    Aluminium - Composite
Input Voltage (V):    4.8V - 6.0V
Servo Type / Size:    Standard
Motor Type:    Coreless Motor
Gear Material:    Titanium Gears
Ball Beared:    Ball Beared
Servo Power - Torque Kg/cm:    16 - 20 Kg/cm
Servo Speed 60°/sec:    0.10 - 0.15 Sec/60°
Length (mm):    40.3 mm
Width (mm):    20.0 mm
Height (mm):    37.2 mm
Weight (g):    52.4 g
Speed 60°/Sec @ 4.8V:    0.18 Sec/60°
Speed 60°/Sec @ 6.0V:    0.15 Sec/60°
Torque kg/cm @ 4.8V:    16 Kg/cm
Torque kg/cm @ 6.0V:    20.0 Kg/cm
Connector type:    JR
Spline size:    25T Spline
