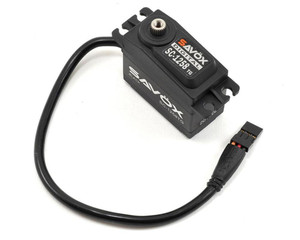

Savox #SA-1258TG Standard Size Digital ServoThe SC1258TG is a high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation.
Features:
Extremely strong titanium gears ensure long-life, durability, and light weight.
Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies.
Aluminum middle case allows for cooler operating temperatures.
Specifications:
Dimensions(mm): 40.3x20.2x37.2
Weight(g): 52.4
Speed(@4.8V sec/60): .10
Torque(@4.8V oz-in): 133.3
Speed(@6.0V sec/60): .08
Torque(@6.0V oz-in): 166.6
Gear: Titanium & Aluminum
Bearing: 2BB
Case: Aluminum
Running current (at no load): 100 mA @ 4.8V
Running current (at no load): 120 mA @ 6.0V
Stall current (at locked): 4000 mA @ 4.8V
Stall current (at locked): 5000 mA @ 6.0V
Idle current (at stopped): 5 mA @ 4.8V
Idle current (at stopped): 5 mA @ 6.0V
Limit angle: 200°±10°
Connector wire gauge: #22 AWG
Connector wire length: 250 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Travel: 100° (when1000?2000 µsec)
Neutral position: 1500 µsec
Dead band width: 3 µsec
Rotating direction: Counterclockwise (when1500?2000 µsec)
Pulse width range: 800?2200 µsec
Maximum travel: Approx 130°(when900?2100 µsec)
