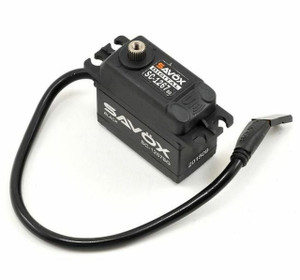

Savox #SC-1268SG Black Standard Size Digital Servo
Savox SC-1268SG-HV-BLACK HV High Torque Steel Gear Servo 20kg 0.15 sec
Savox's SC-1268SG Black Edition Standard "High Torque" Digital Steel Gear High Voltage Servo features a sleek black aluminum center case with laser etched details, as well as a shorter 200mm long heavy duty wire. These servos combine leading edge technology with super high 12 bit (4096) resolution. These servos also feature a redesigned motor/controller unit, and use a 'bullet proof' all steel gear set for unmatched strength that makes them ideal for 1/8 nitro cars, as well as large scale airplanes and 600-700 class heli swashplate applications that require a high torque servo.
Features:
No Regulator needed
Higher performance due to increased voltage and improved technology
Fast response
Incredible torque
Increased transit speed
Increased efficiency
Water resistant with 4 silicon seals implanted
Strong and precise-made steel gears
Suitable for 1/8th nitro racing and large scale aircraft.
Suitable for 600 and 700 class helicopter swash plate servos.
Specifications:
Torque:
@4.8V: 160 oz-in.
@6.0V: 208 oz-in.
@7.4V: 347 oz-in.
Speed:
@4.8V: .15 sec/60°
@6.0V: 0.13sec/60°
@7.4V: 0.11sec/60°
Voltage Range: 4.5v-7.4v
Weight: 62g
Motor: Coreless
Gear: Steel
Case: Aluminum Heatsink
Output Shaft: 25T Spline (Futaba)
Dimensions (LxWxH): 40.3x20.2x37.2mm
Frequency: 250-333hz
Pulse Width Frequency: 1520
