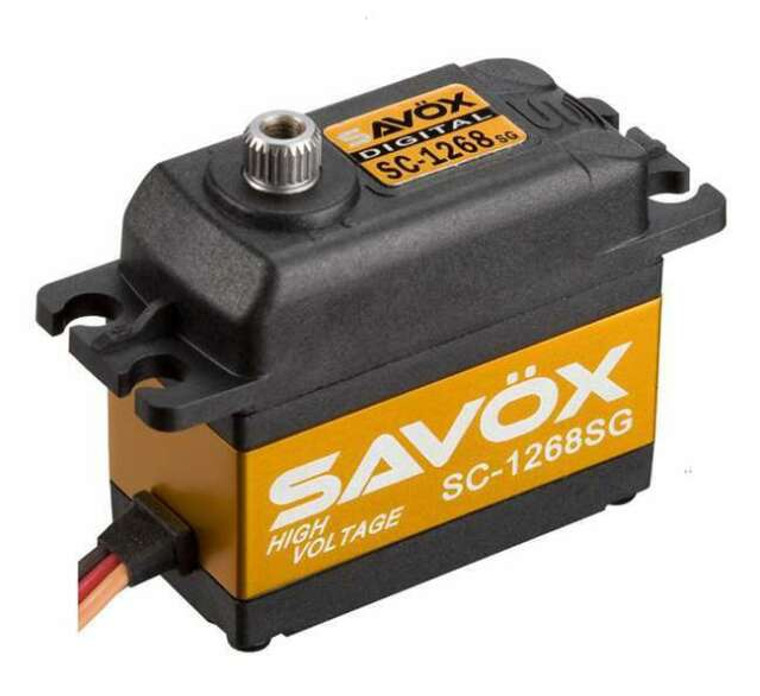

Savox #SC-1268SG Standard Size Digital Servo
This is the Savox SC-1268SG High Voltage High Torque Digital Steel Gear Servo. Savox have now released their 'High Voltage' servo line that can be powered by a unregulated LiPo battery! These servos combine leading edge technology with super high 12 bit (4096) resolution. These servos also feature a redesigned motor/controller unit, and use a 'bullet proof' all steel gear set for unmatched strength.No Regulator needed
Higher performance due to increased voltage and improved technology
Fast response
Incredible torque
Increased transit speed
Increased efficiency
Water resistant with 4 silicon seals implanted
Strong and precise-made steel gears
Suitable for 1/8th nitro racing and large scale aircraft.
Suitable for 600 and 700 class helicopter swash plate servos.
Torque:
@6.0V: 208 oz-in. (13 kg-cm)
@7.4V: 347oz-in. (26 kg-cm)
Speed:
@6.0V: 0.13sec/60°
@7.4V: 0.11sec/60°
Voltage Range: 4.5v-7.4v
Weight: 62g
Motor: Coreless
Gear: Steel
Case: Aluminum Heatsink
Output Shaft: 25T Spline (Futaba)
Dimensions (LxWxH): 40.3x20.2x37.2mm
