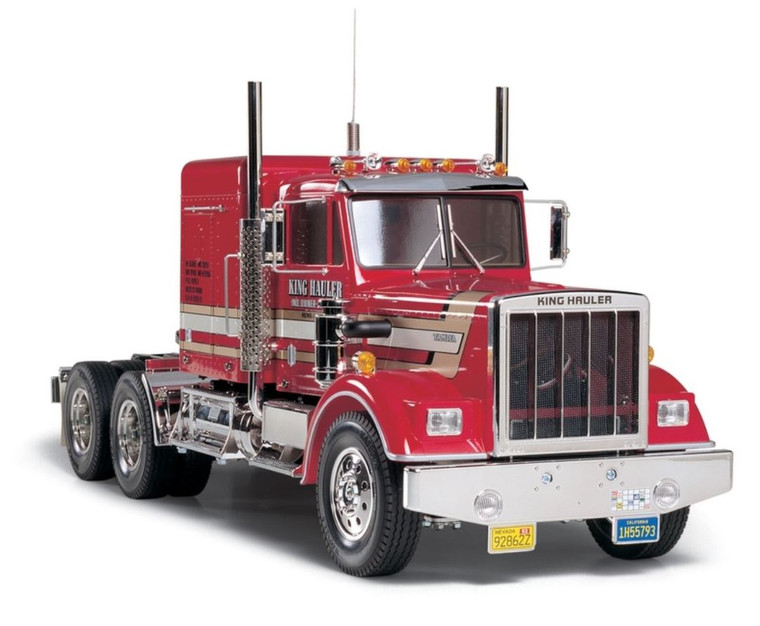

Tamiya #56301 1/14 King Hauler Truck

Tamiya #56301 1/14 King Hauler Truck

The Mighty King Hauler resembles the classic conventional American tractor truck. Powered by a 540 motor driven with a 3-speed transmission, which has no problem turning the dual rear axles. Each axle is supported with leaf spring and shocks. The metal C-Channel ladder frame, keeps the power to the pavement.

FEATURES

3-speed transmission with constant mesh gears
Metal rail chassis
Scale suspension with heavy duty metal leaf-springs and coil spring dampers
Propeller-shaft driven rear axles (both axles are used to drive the truck)
Numerous scale body accessories including metal grab rails and side mirror supports, metal dual exhaust pipes and chrome plated parts (grille,fuel tanks, side steps, horns, wipers, visor, rims, bumpers, light mounts, mirrors and tire guards)
Oilite bearings (bushings)

INCLUDES

Injection molded body (White) and truck interior
10 scale appearance rims and tires
540 motor
Decal sheet (with license plate decal for bumpers)
Mud flaps
Illustrated instructions

Needed to Complete

    4 Channel Radio and Receiver - Futaba 4YWD

    Two Standard Size Servos for steering and Shifting

    Tamiya Brushed ESC

    7.2V NiMH Battery with standard Tamiya connector

    Charger for Battery

    Paint and Building equipment

Specifications

Adjustable Gear Ratio fixed

Bearings metal and plastic bushings

Body Material ABS Plastic

Chassis Material aluminum

Construction Type assembly kit

Differential Type gear

Drive Type 3-speed

Led Light Buckets yes

Led Lights no

Motor 540-brushed type

Requires A 7.2 battery & charger

Scale 1/14

Shock Damper friction damper

Total length: 630mm Total width: 186mm

Wheelbase: 447mm

Tread F/R: 156/138mm

Tire Width: F/R both 22mm

Diameter: F/R both 83mm

Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1

Weight Fully-Equipped: about 3,1kg (without multi function unit)

8 Clearance: 19mm

Suspension leaf spring

Terrain Use on-road
