TIMBERRRRR!!

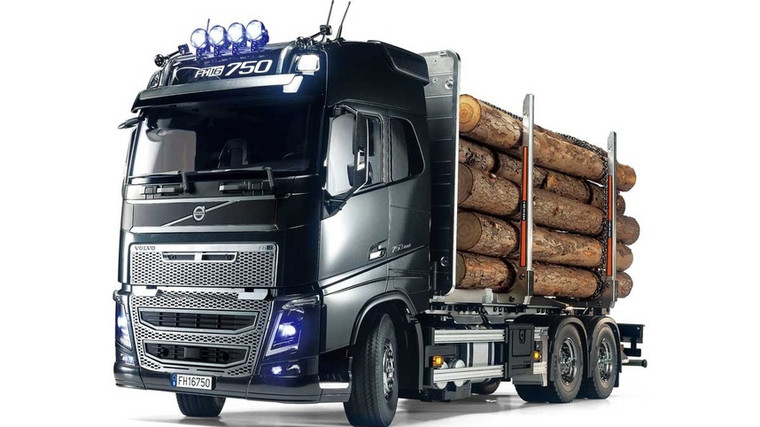

Volvo is a renowned actor in the global commercial vehicle market, with one of their flagship brands being the FH Series that underwent a full model change in 2012. This R/C model assembly kit recreates the 750hp 16.1-liter turbocharged inline-6 engine FH16 Globetrotter 750 6x4 timber truck from that range. The model has a realistic body, and a chassis featuring numerous metal parts. Gear changes are also possible via transmitter controls.
Ladder frame features aluminum side channels with resin cross members. Depictions of stakes and cab rear headboard use a durable combination of resin and metal. Power from the front-mounted motor is delivered to rear axles via propeller shaft. A built-in differential gear on each axle enables smooth cornering. Highly-realistic suspension utilizes metal leaf springs and friction dampers. The model enjoys easy driving thanks to the float-mounted die-cast front and reinforced resin rear axles. The highly accurate body captures the FH16 Globetrotter form, with stainless steel photo-etched front grille, and cab interior details. TR Mighty Tuned motor (35T) provides plenty of power, even when driving with loads.
Specifications
Length: 733mm, Width: 194mm, Height: 306mm, Weight (with R/C equipment and battery pack): Approx. 4.35kg .Wheelbase: 363＋103mm .Tread: 155mm (Front), 138mm (Rear, Double Tire) .Chassis: Aluminum & Polycarbonate Resin Ladder Frame .Suspension: Front/Rear Leaf Springs .Caster Angle: 0° (Front & Rear) .Camber Angle: 0° (Front & Rear) .Toe Angle: 0° (Front & Rear) .Dampers: Aluminum Dummy Dampers (Front & Rear) .Drivetrain: Rear Double Axle Drive .Transmission: 3-gear transmission (shifts operated via transmitter) .Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1 .Diff. Gear: 3-bevel differentials .Motor: Type 540 .Tire Width/Diameter: 30mm/85mm (Front), 22mm/84mm (Rear)
Separately Required Items
4-Channel R/C System w/slide trim levers and self-neutral sticks .Servos x2 .ESC or Multi-Function Control (MFC) Unit .R6/AA/UM3 batteries for transmitter .Battery Pack & Charger
Realistic Lights, Sounds, and Vibration
Tamiya Multi-Function Control Units (sold separately) offer light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from actual trucks, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.
