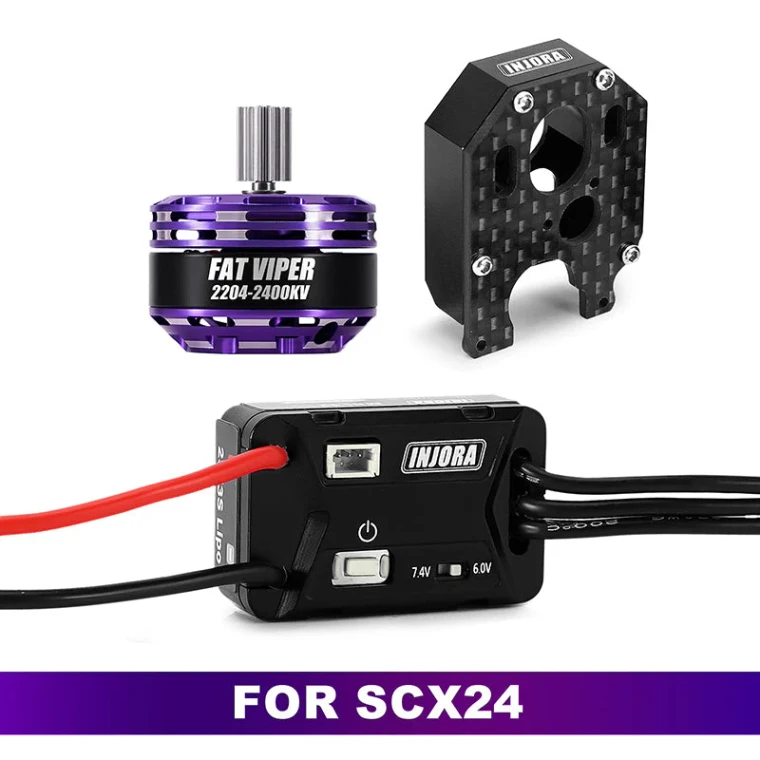

INJORA # MBL32G2-INM18 Waterproof Brushless ESC & 2204 Fat Viper Motor

INJORA # MBL32G2-INM18 Waterproof Brushless ESC & 2204 Fat Viper Motor for 1/24 SCX24 Upgrade

INJORA MBL32 G2 Waterproof Brushless ESC & 2204 Fat Viper Outrunner Motor for 1/24 Axial SCX24 Upgrade

Note:

Programming Tutorial
Please do not flash or modify the firmware by yourself. Any damage caused by unauthorized firmware flashing or modification is not covered under INJORA warranty.
Compatibility Notice:

Compatible with 1/24 SCX24
Radio system: Not compatible with the stock SCX24 radio. Requires a new transmitter and receiver (with CH2).
Transmission: Only compatible with stock SCX24 transmission and INJORA metal transmission SCX24-130
Chassis: Compatible with INJROA SCX24 LCG carbon fiber chassis. For stock SCX24 chassis, the ESC tray must be trimmed to fit the motor.
Features:

The INJORA MBL32 G2, based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.
Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems, producing virtually no noise.
MBL32 G2 features a built-in BEC with adjustable output: 6V/7.4V
Waterproof Design for all-weather performance.
Supports PC Programming via USB programmer card. Factory settings are optimized for INJORA 1721/2204 motors—adjustments are not recommended.
Multiple Protections: Low-voltage, fail-safe, and rotor lock protection.
2204 Fat Viper Outrunner Motor will give your car a better driving performance.
ESC Specifications:

Part Number: MBL32 G2
LiPo Cells: 2-3S
Continuous Current: 25A
Peak Current: 60A
BEC Output: 6.0V/7.4V adjustable
BEC Current: 3A
Dimensions (L*W*H): 30*19*12mm
App Tuning: Not Supported
Weight: 0.45oz (13g)
Waterproof: Yes
Motor Specifications:

Model Number: 2204
Motor Type: Sensorless Brushless Outrunner
RPM/Volt: 2400KV
Motor Poles: 14
Sine Mode Power: 7
Max Power: 2500W
No-Load Current: 0.7A
Max Peak Current: 50A
Motor Connectors: PH2.0 3Pin
Dimensions: Φ28*19.2mm
Motor Output Shaft: Φ2mm
Motor Pinion: 0.5mod 12T
Weight: 28g
Waterproof: Yes
Motor Mount Specifications:

Housing Material: Aluminum, Carbon Fibre
Gears Material: Stainless Steel
Internal Gears: 0.5mod 32T
Package List:
1 * Micro Brushless ESC
1 * USB programmer Card
1 * 2204 Fat Viper Motor
1 * Receiver Connector Cable
1 * Battery Adapter Cable (Female XT30 to Male TRX-4M)
1 * Battery Adapter Cable (Female XT30 to Male JST-PH2.0)
1 * Instruction Manual
